Solid Carbide Deep Face Grooving Tool

Premium solid carbide deep face grooving tool for CNC lathes.

Strong, accurate and stable for deep internal face grooves in steel, stainless steel, aluminum and cast iron.

A solid carbide deep face grooving tool, also called a carbide deep face grooving bar or carbide internal deep face cutting tool, is used for cutting deep and clean internal face grooves inside holes. It is made from solid carbide that provides strong hardness and long wear life. The tool is widely used in CNC lathes where stable cutting and accurate deep grooves are required.

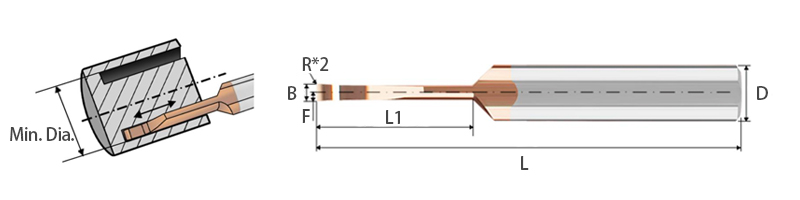

MVR Technical Specifications (Customizable)

Ordering Code	L/mm	D/mm	L1/mm	B/mm	F/mm	Min. Dia./mm
MVR6 B1.5 L10	50	6	10	1.5	0.75	10
MVR6 B1.5 L15	50	6	15	1.5	0.75	10
MVR6 B2 L10	50	6	10	2	1	10
MVR6 B2 L15	50	6	15	2	1	10
MVR6 B2.5 L10	50	6	10	2.5	1.25	10
MVR6 B2.5 L15	50	6	15	2.5	1.25	10
MVR6 B3 L10	50	6	10	3	1.5	10
MVR6 B3 L15	50	6	15	3	1.5	10
MVR6 B4 L10	50	6	10	4	2	10
MVR6 B4 L15	50	6	15	4	2	10
MVR6 B4 L22	50	6	22	4	2	10
MVR8 B1.5 L22	60	8	22	1.5	0.75	12
MVR8 B2 L22	60	8	22	2	1	12
MVR8 B2.5 L22	60	8	22	2.5	1.25	12
MVR8 B2.5 L30	60	8	30	2.5	1.25	12
MVR8 B3 L22	60	8	22	3	1.5	12
MVR8 B3 L30	60	8	30	3	1.5	12
MVR8 B3 L40	80	8	40	3	1.5	12
MVR8 B4 L22	60	8	22	4	2	12
MVR8 B4 L30	60	8	30	4	2	12
MVR8 B4 L40	80	8	40	4	2	12

Product Features and Advantages

Clean deep grooves: Creates accurate and smooth deep face grooves with a fine surface finish.
High durability: Solid carbide material keeps the tool sharp for a long time and supports continuous cutting.
Stable performance: The rigid structure reduces vibration and keeps the groove depth consistent.
Wide material range: Works well on steel, stainless steel, aluminum, copper and cast iron.
Better productivity: Long life and stable cutting help reduce tool changes and improve machining speed.

How to Use

Install the deep face grooving tool firmly in the tool holder. Adjust the tool length to match the depth of the groove. Select the right insert size for the width and depth of the groove. Use proper cutting speeds and feeds for the metal you are machining. Apply coolant to improve surface quality and protect the tool.

Common Questions

Q1: How do I choose the right deep face grooving tool?
A: Choose a tool that fits your inner diameter and required groove depth. Make sure the shank matches your CNC holder.

Q2: Can it cut very deep face grooves?
A: Yes. It is designed for deeper internal grooves. Use the correct insert and cutting parameters to keep the cut stable.

Q3: What materials can I machine with this tool?
A: You can use it for steel, stainless steel, aluminum and many other metals.

Q4: How do I extend the tool life?
A: Keep the cutting process steady, avoid strong vibration and use cutting oil or coolant.
