Minnexon Specialization: Performance Engineered, Not Mass Produced

At Minnexon, we reject the notion of a single, generic coating solution. Machining high-hardness steel (HRC 55+) requires a calculated approach where the tungsten carbide substrate and the coating chemistry are perfectly matched to handle extreme heat and immense cutting forces.

While many competitors offer a generic tool, Minnexon provides optimized solutions. By pairing our proprietary ultra-fine grain carbide with the specialized TiAlSiN Blue Nano Coating, we deliver an integrated system guaranteed to increase your tool life by 30% to 50% compared to non-targeted, mass-produced tools.

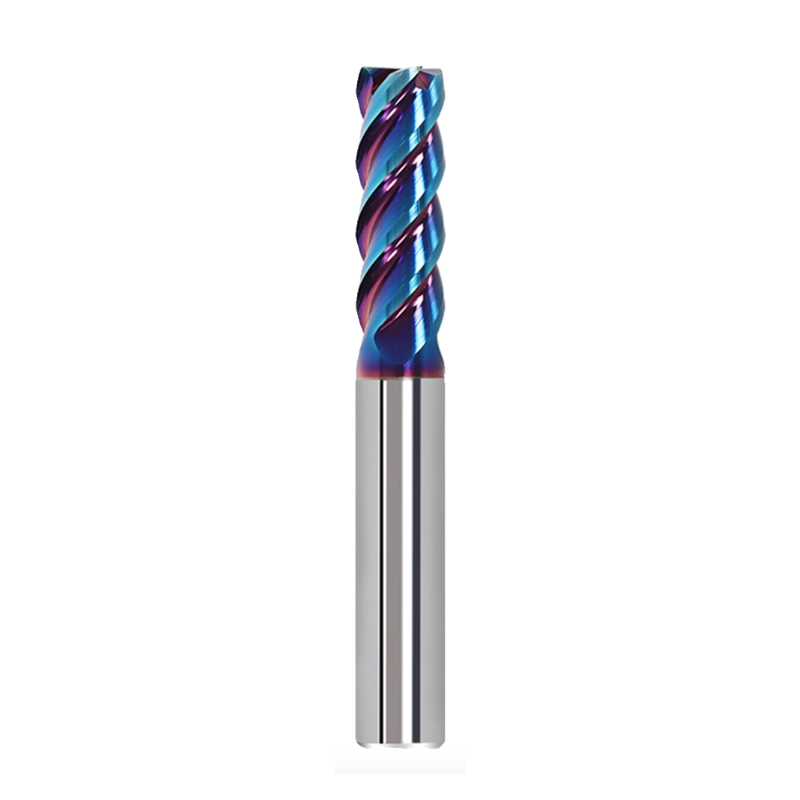

The HRC 65 Solution: Blue Nano TiAlSiN Series

This 4-Flute end mill is the definitive choice for hard milling, designed to sustain performance where other coatings fail.

TiAlSiN: The Nano-Composite Advantage

The distinctive blue-gray hue of our TiAlSiN coating signifies its superior performance:

• Extreme Hot Hardness: The addition of Silicon (Si) to the Titanium Aluminum Nitride structure creates an advanced Nanocomposite formation. This structure forms an amorphous, glass-like thermal barrier that prevents grain growth and maintains the coating’s hardness even at temperatures exceeding $1100^{\circ}\text{C}$.
• Superior Oxidation Resistance: This coating is specifically engineered to resist oxidation at the extreme temperatures generated when cutting hardened steel, protecting the tool at all times.
• Reduced Friction: The nano-structure provides a smoother surface finish, minimizing chip welding and ensuring exceptional stability during high-speed finishing passes.

4-Flute Geometry for Hard Milling

In hard milling, stability is paramount. Our 4-Flute design ensures:

• Maximum Core Rigidity: The dense flute configuration provides the highest core strength possible, drastically reducing deflection, chatter, and vibration when plunging or profiling hard materials.
• Excellent Finish: The four cutting edges ensure superior chip load control, resulting in the flawless surface finishes required for post-heat-treat components and mold cavities.

Technical Specifications

Target Applications

This tool is optimized for the most challenging heat-treated materials:

• Hardened Tool Steels: D2, H13, M2, S7 (Post-Heat Treatment)
• High Carbon & Chromium Steels
• Hardened Alloy Steels
• Cast Iron / Ductile Iron

Frequently Asked Questions (FAQ)

Q1: Why is the TiAlSiN coating rated for HRC 65? What is its advantage over standard AlTiN?

A: The key is the inclusion of Silicon (Si). TiAlSiN is an advanced nanocomposite structure. The silicon forms a stable, amorphous (glass-like) phase that prevents crystal growth at extreme heat. This dramatically increases the coating’s Hot Hardness and oxidation resistance well beyond standard AlTiN, allowing the tool to maintain stability and integrity when cutting steel above HRC 60.

Q2: What does the term “Blue Nano Coating” mean for the tool’s performance?

A: The term Nano refers to the microstructure. The silicon content controls the formation of a dense, fine-grained nanocomposite structure. This structure provides unparalleled surface hardness and resistance to micro-chipping and wear. The Blue/Blue-Gray color is an indicator of this specific, highly advanced TiAlSiN coating chemistry.

Q3: What is the benefit of the 4-flute design when machining high-hardness materials?

A: In hard milling (HRC 55+), rigidity is paramount. The 4-flute geometry offers the largest possible core diameter, providing maximum rigidity, stability, and resistance to deflection and chatter. This ensures dimensional accuracy and achieves the superior surface finishes required for post-heat-treat components.

Q4: Can I use this HRC 65-rated tool for softer steel (e.g., HRC 40) or general-purpose work?

A: Yes, the tool will perform excellently due to its downward compatibility. However, for maximum cost-per-part efficiency on HRC 45 and below materials, we recommend consulting our dedicated TiAlN (HRC 45) or TiCN series. Using a specialized tool ensures you maximize both tool life and cost-effectiveness for the specific material hardness.

Q5: Should I use coolant when hard milling with this TiAlSiN tool?

A: For hard milling, we typically recommend MQL (Minimum Quantity Lubrication) or Air Blast. The TiAlSiN coating is designed to perform best at high heat. Introducing large volumes of Flood Coolant can cause rapid heating and cooling cycles (thermal shock) on the cutting edge, which can lead to micro-cracking and premature coating failure.

Q6: How does Minnexon achieve a 30%-50% tool life increase over generic solutions?

A: We focus on System Optimization rather than just the coating:

1. Substrate Match: We pair the TiAlSiN chemistry with a proprietary ultra-fine grain tungsten carbide substrate specifically engineered to resist the high-frequency micro-vibrations inherent in hard milling.
2. Targeted Chemistry: Our TiAlSiN formulation is optimized to the exact HRC 65 performance envelope.

This precise balance of the substrate material and the advanced coating chemistry allows our tools to withstand maximum thermal and mechanical stress, delivering the guaranteed 30% to 50% tool life improvement.
