The Tungsten Steel Straight Groove Chamfering Cutter is a high-precision tool made from solid tungsten steel, ideal for chamfering, deburring, and countersinking. It offers excellent wear resistance and durability, with a coated surface for extended tool life. Suitable for processing cast iron, aluminum alloys, and stainless steel.
Product Overview

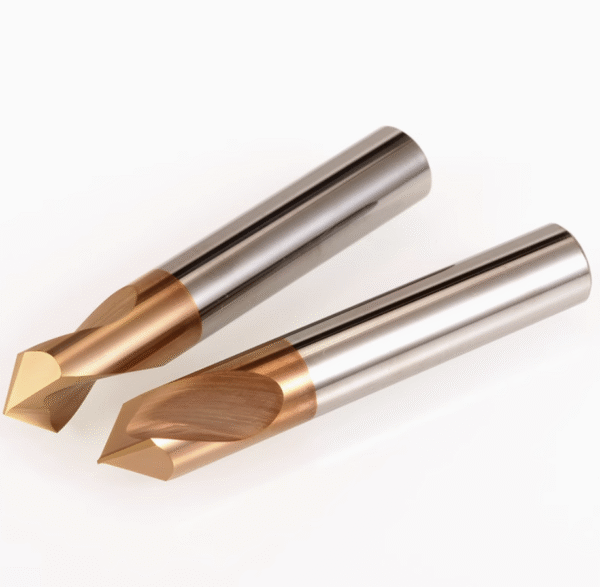

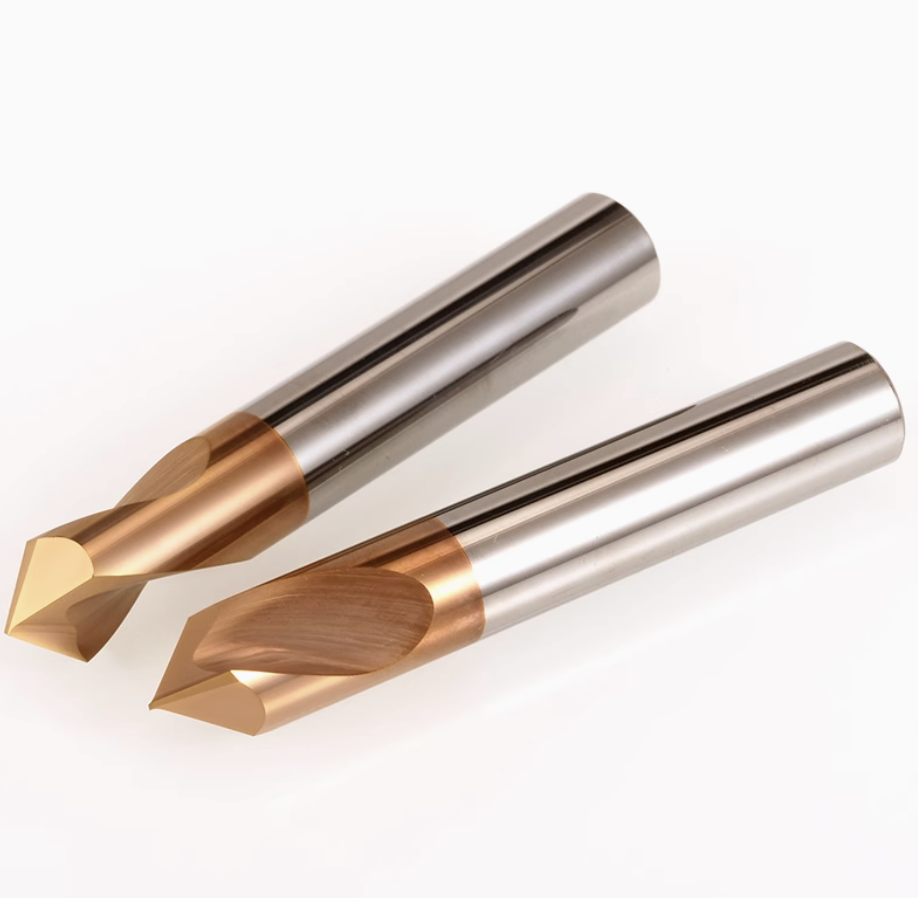

Product Name: Tungsten Steel Straight Groove Chamfering Cutter
Material: Solid Tungsten Steel
Application: Suitable for deburring, countersinking, and chamfering of round holes and beveled edges
Compatible Materials: Cast iron, aluminum alloy, stainless steel, and other metals
Coating: Coated (enhanced durability and wear resistance)
Cutting Angles Available: 60°, 90°, 120°
Specifications
| Product Code | Cutting Dia (mm) | Angle (°) | Shank Dia (mm) | Overall Length (mm) | Flutes |
|---|---|---|---|---|---|
| H131210450 | 1 | 90 | 4 | 50 | 2 |
| H131211250 | 1.2 | 90 | 4 | 50 | 2 |
| H131215450 | 1.5 | 90 | 4 | 50 | 2 |
| H131220450 | 2 | 90 | 4 | 50 | 2 |
| H131225450 | 2.5 | 90 | 4 | 50 | 2 |
| H131230450 | 3 | 90 | 3 | 50 | 3 |
| H131204050 | 4 | 90 | 4 | 50 | 3 |
| H131205050 | 5 | 90 | 5 | 50 | 3 |
| H131206050 | 6 | 90 | 6 | 50 | 3 |
| H131208050 | 8 | 90 | 8 | 50 | 3 |
| H131210075 | 10 | 90 | 10 | 75 | 3 |
| H131212075 | 12 | 90 | 12 | 75 | 3 |
| H131303050 | 3 | 60 | 3 | 50 | 3 |
| H131304050 | 4 | 60 | 4 | 50 | 3 |
| H131306050 | 6 | 60 | 6 | 50 | 3 |
| H131308060 | 8 | 60 | 8 | 60 | 3 |
| H131310075 | 10 | 60 | 10 | 75 | 3 |
| H131312075 | 12 | 60 | 12 | 75 | 3 |
| H131403050 | 3 | 120 | 3 | 50 | 3 |
| H131404050 | 4 | 120 | 4 | 50 | 3 |
| H131406050 | 6 | 120 | 6 | 50 | 3 |
| H131408060 | 8 | 120 | 8 | 60 | 3 |
| H131410075 | 10 | 120 | 10 | 75 | 3 |
| H131412075 | 12 | 120 | 12 | 75 | 3 |
